Sale!
In Stock

All-City Space Horse Bike 650b Steel Tiagra Royal Mint

9% Off, Free Shipping, 7 Sizes

Original price was: $1,979.00.Current price is: $1,799.00.

This product is shipped only in the U.S.
  • Model: Space Horse Tiagra Bike – Royal Mint
  • Brand: All-City
  • Imported
  • Free Shipping
Stock availability can be changed at any time
SKU: N/A Categories: , , , Tags: , ,

Description

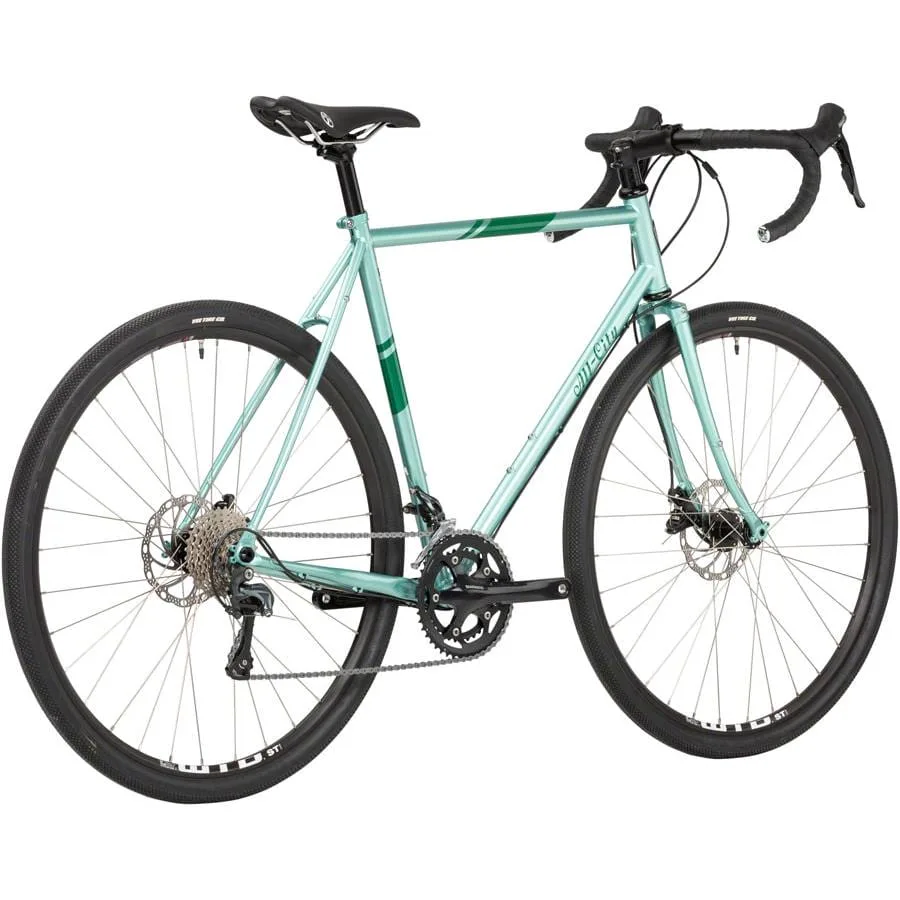

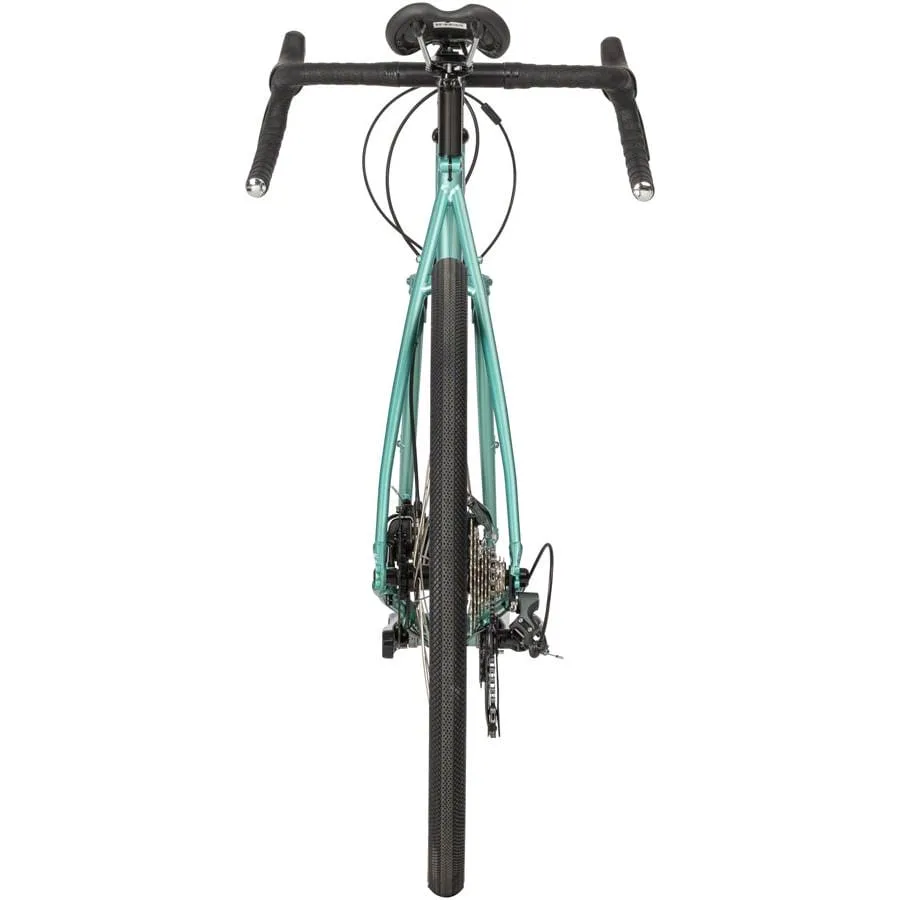

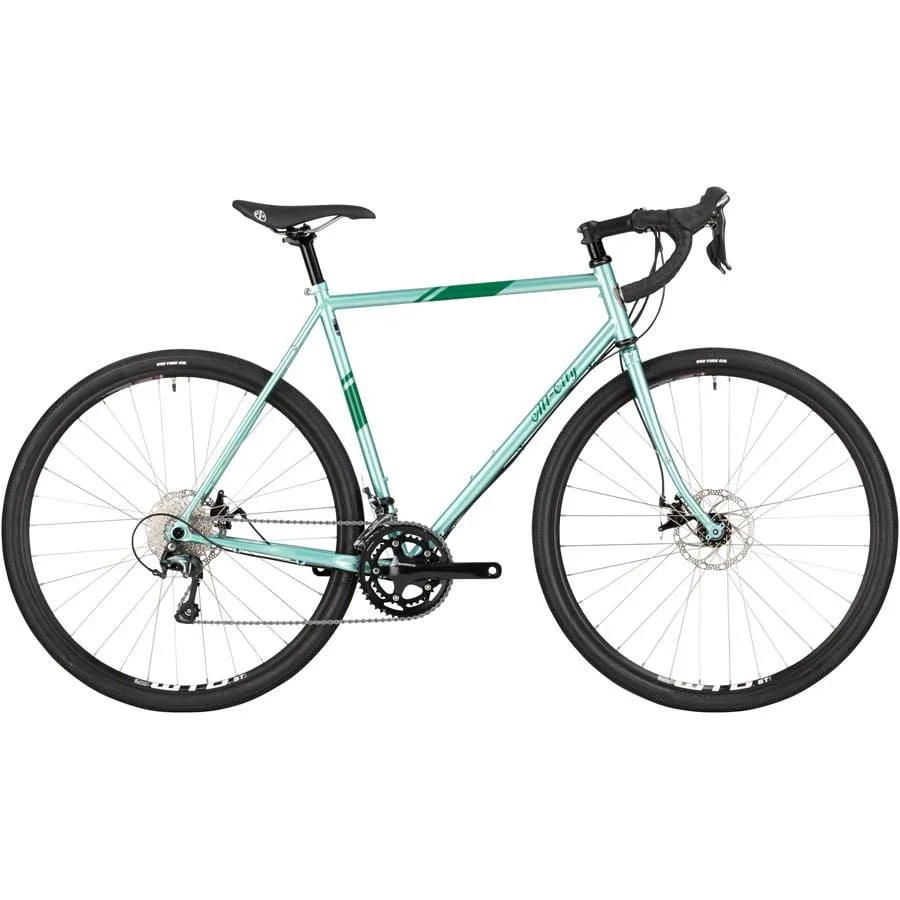

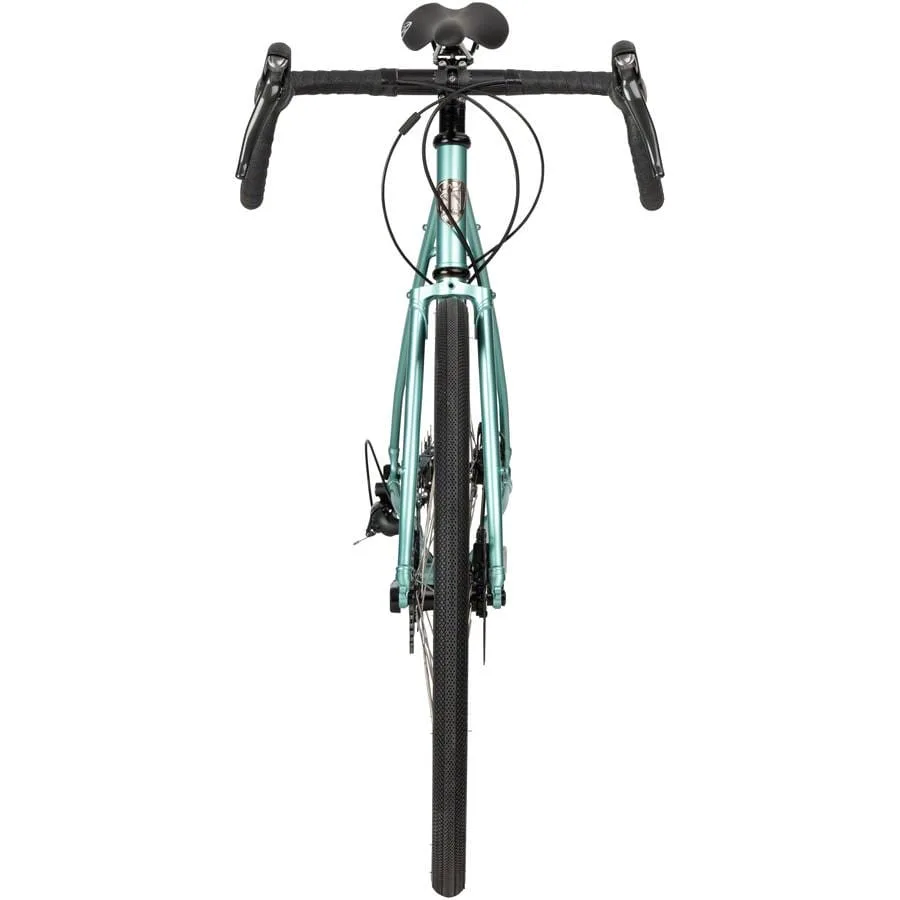

All-City Space Horse Bike – 650b, Steel, Tiagra, Royal Mint

Our most popular and versatile model, the Space Horse has become a bit of a cult favorite through its classic styling and ability to handle just about any task or terrain. Ambitious road centuries, gravel grinding, loaded touring, looking great while commuting — the Space Horse is equipped for it all.

  • 612 Select Tubing – a proprietary blend of 4130 double-butted Chromoly tubes, every piece of tubing on every frame size has been carefully chosen to provide the best ride possible
  • Geometry — Mix between road and randonneuring with a relatively short rear end and a slightly lower bottom bracket than a standard road bike
  • 12mm front and rear thru-axles, flat-mount disc brakes
  • Front and rear rack mounts, fender mounts, and pump peg
  • Fork features ports for internal Dynamo cable routing
  • Tire Clearance — 43–61cm frames fit 650b x 47mm (650b x 42mm w/fenders); additionally, 49–61cm frames fit 700c x 45mm (700c x 42mm w/fenders)
  • Signature custom-cast dropout with replaceable derailleur hanger, signature lugged fork crown and custom fork ends, integrated seat collar, pantographed bottom bracket shell, reinforced bottle bosses for three bottle cages
  • Fork Material: Steel
  • Color: Royal Mint
  • Wheel Size: 650b
  • Brake Type: Disc
  • Platform: Space Horse
  • Fork Type: Rigid
  • Rear Axle: 12mm Thru x 142mm
  • Frame Material: Steel
  • TT (Effective):
    43cm- 495,
    46cm- 515,
    49cm- 530,
    52cm- 545,
    55cm- 560,
    58cm- 580,
    61cm- 610
  • Defined Color: Green
  • Mfg Size: 43cm / 46cm / 49cm / 52cm / 55cm / 58cm / 61cm
  • Front Axle: 12mm Thru x 100mm
  • Frame Type: Rigid

Prop65warning 6pt WARNING Handling this product will expose you to chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. For further information go to www.P65Warnings.ca.gov

All-City Space Horse Bike – 650b, Steel, Tiagra, Royal Mint

Frameset

Frame: 612 Select Chromoly Steel, TIG Welded and Brazed, E.D. Coated

Fork: 612 Select Chromoly Steel, All-City Signature Fork ends and Crown, TIG Welded and Brazed, E.D. Coated

Seatpost Clamp: All-City Signature Brazed-on Seat Collar

Drivetrain

Crankset: Shimano Taigra R460, 46/34t

Bottom Bracket: Shimano BSA

Front Derailleur: Shimano Tiagra 4700

Rear Derailleur: Shimano Tiagra 4700, GS 10-speed

Cassette / Cog: MicroSHIFT, 11-32t

Chain: KMC X10 EPT

Components

Grips / Bar Tape: All-City Embossed Black Tape

Handlebar: AL6061, 31.8mm, 12° Flair

Stem: AL6061, 3D forged, 4-bolt stem, 31.8mm, ±6° Rise

Headset: Cane Creek 40 Series

Shifter / Brake Levers: Shimano Tiagra 4700

Brakes: Tektro MD-C550, with short cable pull

Rotors: Tektro TR160-22, 160mm, 6-bolt

Saddle: All-City Gonzo -OR- DDK-5255

Seatpost: 27.2mm, two-bolt, 350mm length

Wheels

Front Hub: All-City Go Devil, 32h, 6-bolt

Rear Hub: All-City Go Devil, 32h, 6-bolt

Rims: WTB ST i19, TCS 2.0, 32h, 650b (43cm~46cm); WTB ST i19, TCS 2.0, 32h, 700c (49cm~61cm)

Tires: Vee Speedster, 650b x 38mm (43cm~46cm); Vee Speedster, 700c x 40mm (49cm~61cm)

Tubes: included

Other

Pedals: N/A

Misc –

* Specifications are subject to change without notice

GEOMETRY

bike geometry

Frame measurements (mm) 43cm 46cm 49cm 52cm 55cm 58cm 61cm
A. BB Drop 58 58 75 75 75 75 75
B. Chainstay Length 420 420 435 440 440 445 445
C. Fork Length – Axle to Crown 376 376 395 395 395 395 395
D. Fork Offset 49 49 52 52 47 47 47
E. Head Tube Angle (deg) 70 70.5 71 71 72 72 72
F. Headtube Length 95 105 110 125 150 175 200
G. Reach 363 375 376 380 380 387 403
H. Seat Tube Angle (deg) 75 74.5 74.2 73.5 73 72.5 72
I. Seat Tube Length – Center to Top 420 450 480 510 540 570 600
J. Stack 493 504 545 559 589 612 636
K. Standover 725.3 747.2 779 802 831 857.3 883.1
L. Top Tube Length (Effective) 495 515 530 545 560 580 610
M. Wheelbase 989.4 1001.1 1021.1 1034.6 1029.9 1049.6 1073.7
Component measurements (mm)
Crank Arm Length 165 165 170 170 172.5 175 175
Handlebar Width 380 380 400 420 420 440 460
Stem Length 70 80 90 100 100 110 120

* All dimensions are preliminary and subject to change

Additional information

Categories

Brand

Material

Color

Size

43cm, 46cm, 49cm, 52cm, 55cm, 58cm, 61cm
