In Stock

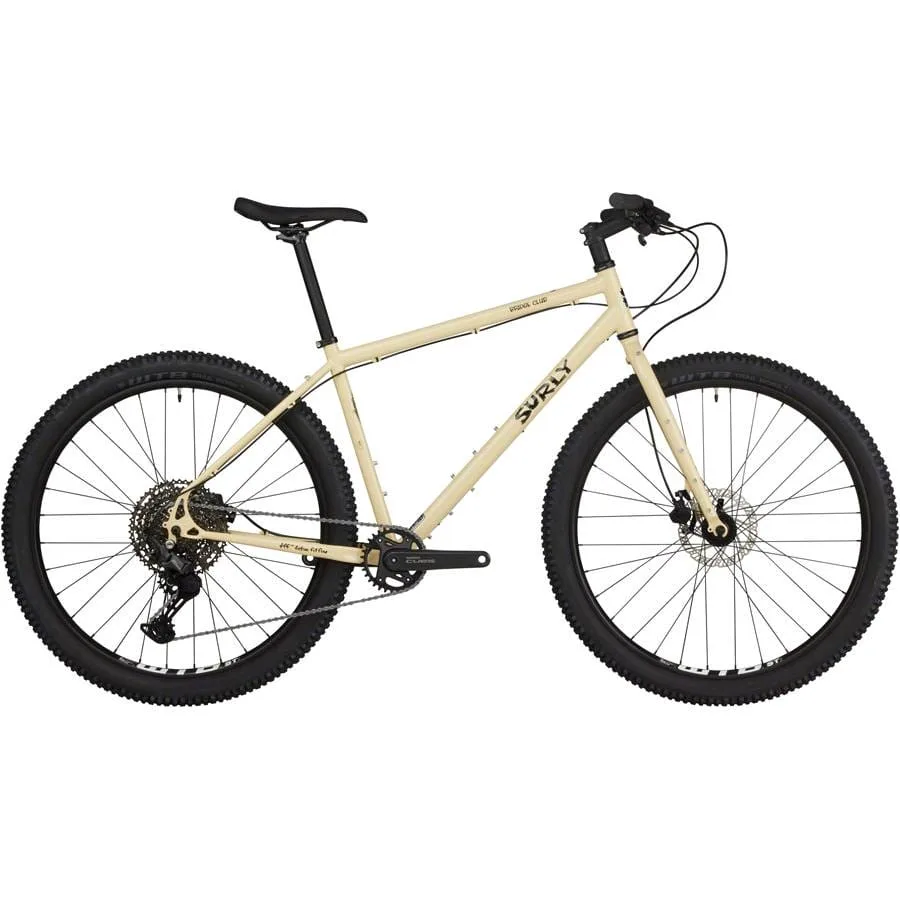

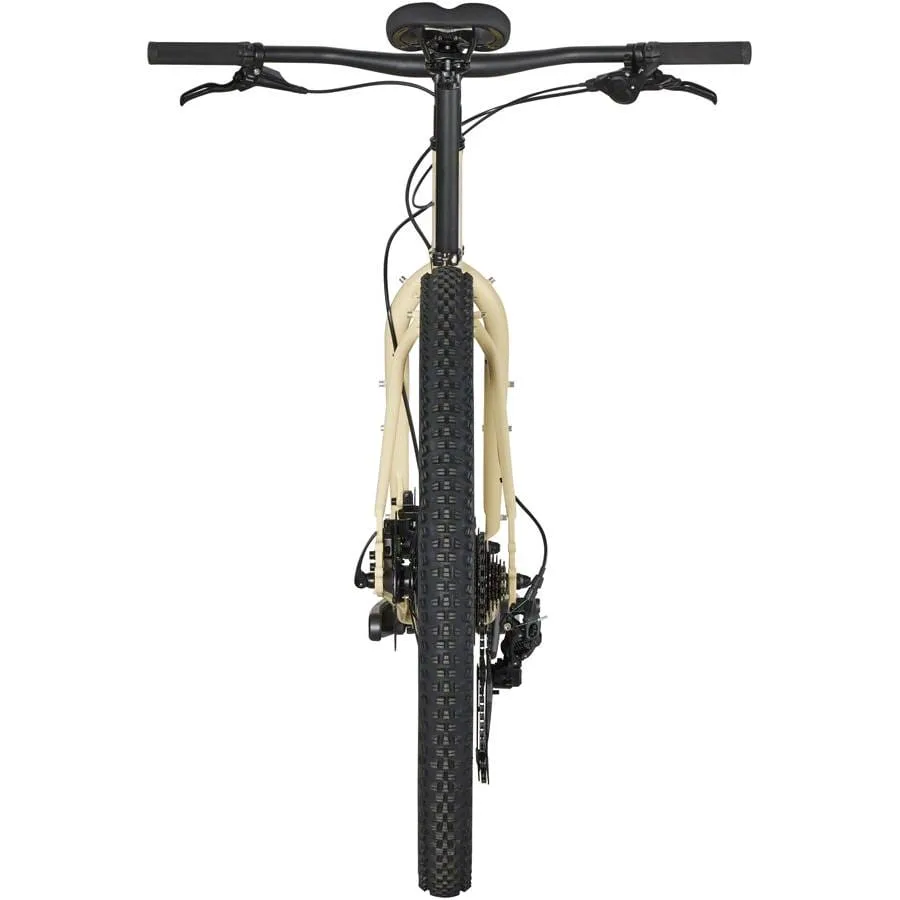

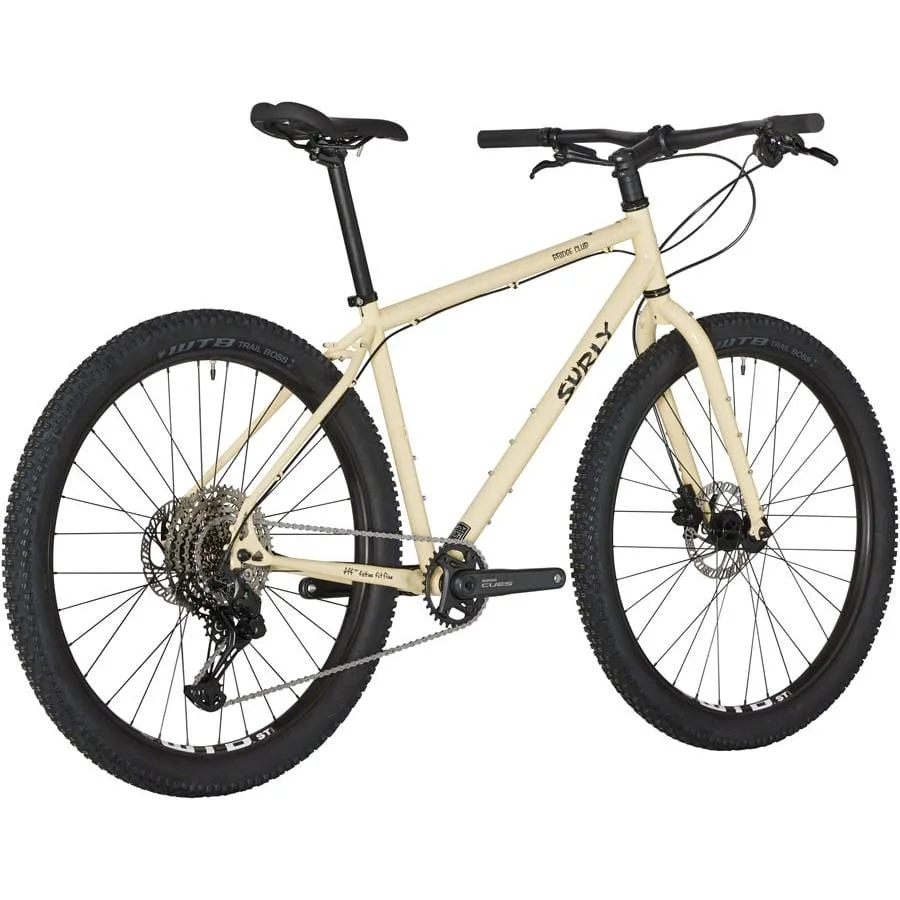

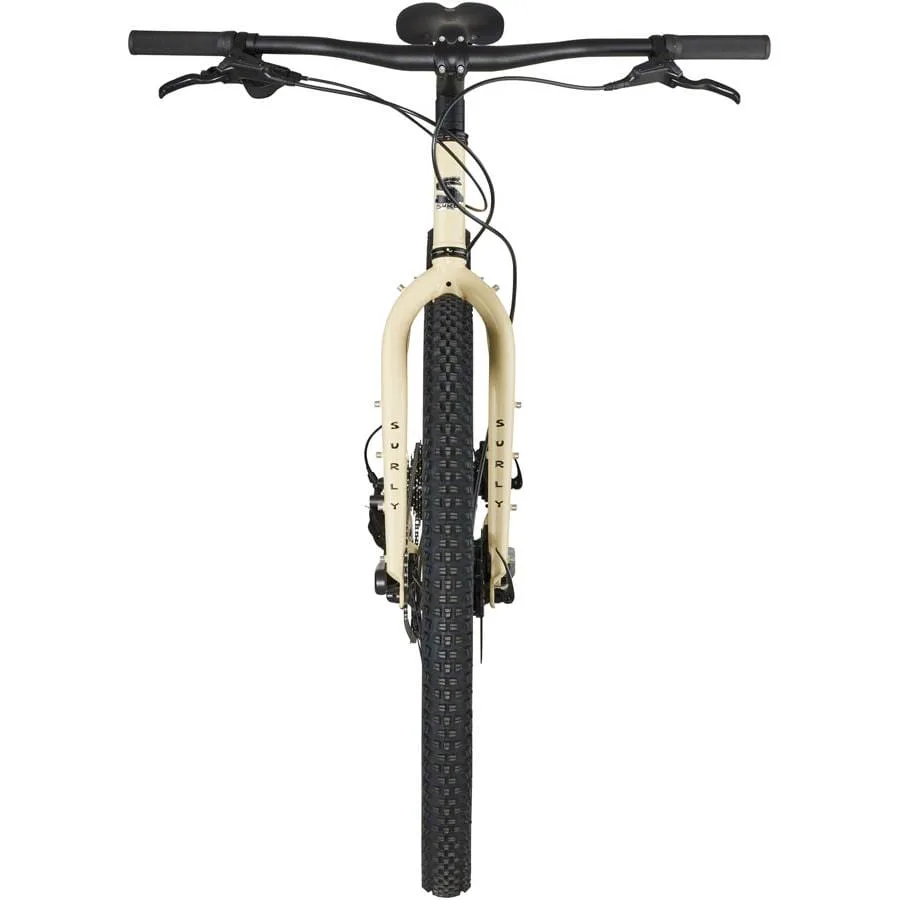

Surly Bridge Club Bike 27.5″ Steel Whipped Butter

Free Shipping, 5 Sizes

$1,499.00

This product is shipped only in the U.S.
  • Model: Bridge Club 27.5 Bike – Whipped Butter
  • Brand: Surly
  • Imported
  • Free Shipping
Stock availability can be changed at any time

Description

Surly Bridge Club Bike 27.5″ Steel Whipped Butter

As a highly versatile touring bike, the Bridge Club hits the sweet spot that separates on- and off-road excursions. The simplistic design makes it fully adept to handle a full rack and pannier setup, frame bags, or any combination of the two. It doesn’t feel sluggish on paved shortcuts, but can also hold its own on dirt detours. If you’re feeling a little zesty on your next road tour, you won’t be ill-prepared for reroutes through the woods. The Bridge Club is designed to handle it all.

  • 100% Surly Chromoly frame, main triangle is double-butted; 1-1/8″ threadless Chromoly fork
  • Rack, fender, and four sets of three-pack mounts
  • Disc brake-specific, single-position vertical rear dropout makes it less intimidating than other bikes in the category
  • Clearance for 700 x 47mm (with or without fenders) or 27.5 x 2.8″ tires (27.5 x 2.6″ with fenders)
  • Fork Material: Steel
  • Color: Whipped Butter
  • Wheel Size: 27.5″
  • Brake Type: Disc
  • Platform: Bridge Club
  • Fork Type: Rigid
  • Frame Material: Steel
  • TT (Effective):
    X-Small-545
    Small-570
    Medium-595
    Large-615
    X-Large-630
  • Mfg Size: X-Small/Small/Medium/Large/X-Large
  • Frame Type: Rigid

Prop65warning 6pt WARNING Handling this product will expose you to chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. For further information go to www.P65Warnings.ca.gov

Surly Bridge Club Bike 27.5″ Steel Whipped Butter

Frameset

Frame: Bridge Club – 100% Chromoly Steel frame, Natch tubing, double-butted main triangle, TIG welded, E.D. coated

Fork: Bridge Club – 100% Chromoly Steel fork, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated

Seatclamp: Surly Stainless 30.0

Drivetrain

Crankset: Shimano Cues, 32t

Bottom Bracket: Shimano MT501

Front Derailleur: N/A

Rear Derailleur: Shimano Cues

Cassette / Cog: Shimano Cues, 11-50t, 11-speed

Chain: KMC

Components

Grips / Bar Tape: Velo Black

Handlebar: Salsa Bend

Stem: Promax, 31.8mm

Headset: Cane Creek 40 Series, 1-1/8″ Threadless

Shifter: Shimano Cues

Brakes Calipers and Rotors: Tektro Hydraulic, Tektro 160/160, 6-bolt

Saddle: WTB Volt

Seatpost: Promax 27.2 x 350mm, 12mm offset

Wheels

Front Hub: Novatec 9x100mm QR, 6-bolt disc

Rear Hub: Novatec 10x141mm QR, 6-bolt disc

Spokes: 14G Black

Rims: WTB ST i29 TCS, 32h

Tires: WTB Trail Boss 27.5 x 2.4″, 27tpi, wire bead

Other

Pedals: N/A

Misc: –

* Specifications are subject to change without notice

GEOMETRY

bike geometry

Frame measurements (mm) XS SM MD LG XL
A. BB Drop 60 60 60 60 60
B. Chainstay Length 435 435 435 435 435
C. Fork Length – Axle to Crown 420 420 420 420 420
D. Fork Offset 43 43 43 43 43
E. Head Tube Angle (deg) 70.0 71.0 71.0 71.0 71.0
F. Headtube Length 110 120 130 145 165
G. Reach 376 397 419 434.5 444
H. Seat Tube Angle (deg) 73.0 73.0 73.0 73.0 73.0
I. Seat Tube Length – Center to Top 335.6 406.4 457.2 508 558.8
J. Stack 553 567 576 590 609
K. Standover 709 750.5 780 812 845.5
L. Top Tube Length (Effective) 545 570 595 615 630
M. Wheelbase 1032 1047.5 1073 1093 1109
Component measurements (mm)
Crank Arm Length 170 170 175 175 175
Handlebar Width 700 700 740 740 740
Stem Length 80 80 90 100 100
Stem Angle (deg) 0 0 0 0 0

* All dimensions are preliminary and subject to change

Additional information

Brand

Frame Type

Material

Size

X-Small, Small, Medium, Large, X-Large
