Description

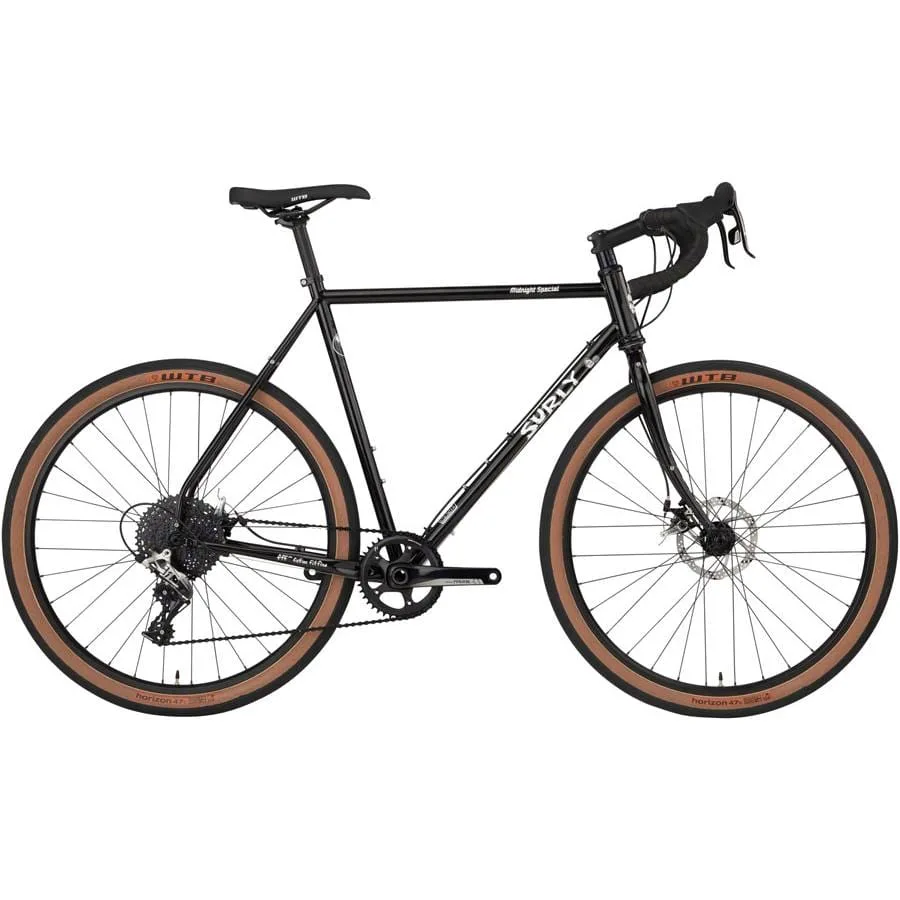

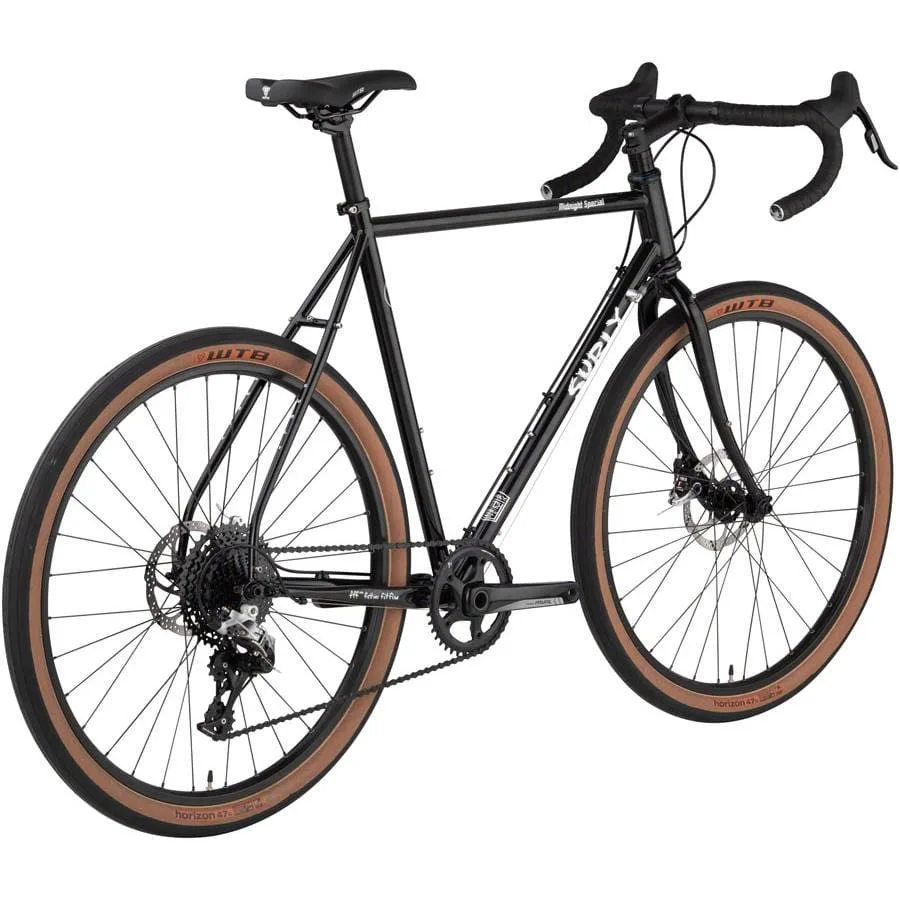

Surly Midnight Special Bike – 650b, Steel, Black
The Midnight Special is a road plus bike designed to provide comfort and speed on those all-day rides that extend well beyond fresh pavement. It excels on pot-holed, deteriorating pavement and the occasional long stretch of gravel. The Midnight Special’s 650b road plus tires eat up road chatter and absorb all the bumps in the road for a much more comfortable ride.
- 100% Surly Chromoly frame, main triangle is double-butted; 1-1/8″ threadless Chromoly fork
- Rack, fender, and three sets of water bottle mounts
- Flat-Mount disc brakes
- 44mm head tube
- Tire Clearance: 27.5 x 2.35″ (w/o fenders), 700c x 42mm (w/o fenders), 650b x 50 (w/ fenders), 700c x 38mm (w/ fenders)
- Fork Material:Â Steel
- Color:Â Black
- Wheel Size:Â 650b+
- Brake Type:Â Disc
- Platform:Â Midnight Special
- Fork Type:Â Rigid
- Rear Axle:Â 12mm Thru x 142mm
- Frame Material:Â Steel
- TT (Effective):Â
40cm-500,
46cm-520,
50cm-540,
54cm-555,
56cm-570,
58cm-585,
60cm-605,
64cm-625
- Defined Color:Â Black
- Mfg Size:Â 40
- Front Axle:Â 12mm Thru x 100mm
- Frame Type:Â Rigid
 WARNING Handling this product will expose you to chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.
Surly Midnight Special Bike 650b Steel Black
Frame: Surly Midnight Special, 4130 CroMoly, double-butted main triangle, ED coated, TIG-welded
Fork: Surly Midnight Special, 4130 CroMoly,, ED coated, TIG-welded
Crankset: SRAM Rival 1 40T
Rear Derailleur: SRAM Rival 1
Cassette / Cog: SunRace 11-42t
Grips / Bar Tape: Black Cork
Handlebar: Salsa Cowbell 3
Stem: ProMax, 31.8 4 bolt
Brake Levers: SRAM Rival 1
Seatclamp: 30.0mm Surly Stainless
Seatpost: ProMax SP-2019 27.2x300mm non-offset (for 40-50) Black
ProMax SP-2016 27.2x300mm offset (for 54-64cm) Black
Front Hub: Novatech D791, 12mm Thru, 32H
Rear Hub: Novatech D792, 142mm Thru, 32H
Front Thru Axle / QR: Thru Axle
Rear Thru Axle / QR: Thru Axle
Rims: Alex Adventurer 2, Tubeless ready, 32H
Tires: WTB Horizon, 650b x 47, tan wall
* Specifications are subject to change without notice
GEOMETRY
| Frame measurements (mm) |
40cm |
46cm |
50cm |
54cm |
56cm |
58cm |
60cm |
64cm |
| A. BB Drop |
70 |
70 |
65 |
65 |
65 |
65 |
65 |
65 |
| B. Chainstay Length |
425 |
425 |
425 |
425 |
425 |
425 |
425 |
425 |
| C. Fork Length – Axle to Crown |
400 |
400 |
400 |
400 |
400 |
400 |
400 |
400 |
| D. Fork Offset |
50 |
50 |
50 |
50 |
40 |
40 |
40 |
40 |
| E. Head Tube Angle (deg) |
71.0 |
71.5 |
72.0 |
72.5 |
73.0 |
73.0 |
73.5 |
74.0 |
| F. Headtube Length |
95 |
100 |
110 |
125 |
140 |
160 |
180 |
200 |
| G. Reach |
363 |
366 |
379 |
389 |
393 |
402 |
409 |
423 |
| H. Seat Tube Angle (deg) |
75.5 |
74.0 |
73.5 |
73.5 |
73.0 |
73.0 |
72.5 |
72.5 |
| I. Seat Tube Length – Center to Top |
400 |
460 |
500 |
540 |
560 |
580 |
600 |
640 |
| J. Stack |
531 |
538 |
544 |
560 |
580 |
599 |
620 |
641 |
| K. Standover |
720 |
751 |
778 |
806 |
827 |
846 |
866 |
895 |
| L. Top Tube Length (Effective) |
500 |
520 |
540 |
555 |
570 |
585 |
605 |
625 |
| M. Wheelbase |
993 |
994 |
1007 |
1018 |
1012 |
1027 |
1036 |
1050 |
|
|
|
|
|
|
|
|
|
| Component measurements (mm) |
|
|
|
|
|
|
|
|
| Crank Arm Length |
165 |
170 |
170 |
175 |
175 |
175 |
175 |
175 |
| Handlebar Width |
400 |
400 |
400 |
420 |
440 |
440 |
460 |
460 |
| Handlebar Rise / Drop |
– |
– |
– |
– |
– |
– |
– |
– |
| Stem Length |
70 |
80 |
80 |
100 |
100 |
120 |
120 |
120 |
| Stem Angle (deg) |
7 |
7 |
7 |
7 |
7 |
7 |
7 |
7 |
* All dimensions are preliminary and subject to change
