Sale!
In Stock

Surly Wednesday Fat Bike 26″ Steel Shangri La Green

13.5% Off, Free Shipping, 5 Sizes

Original price was: $1,849.00.Current price is: $1,599.00.

This product is shipped only in the U.S.
  • Model: Wednesday Fat Bike – Shangri-La Green
  • Brand: Surly
  • Manufacturer Part Number: 04-001915
  • Imported
  • Free Shipping
Stock availability can be changed at any time
SKU: N/A Categories: , , Tag:

Description

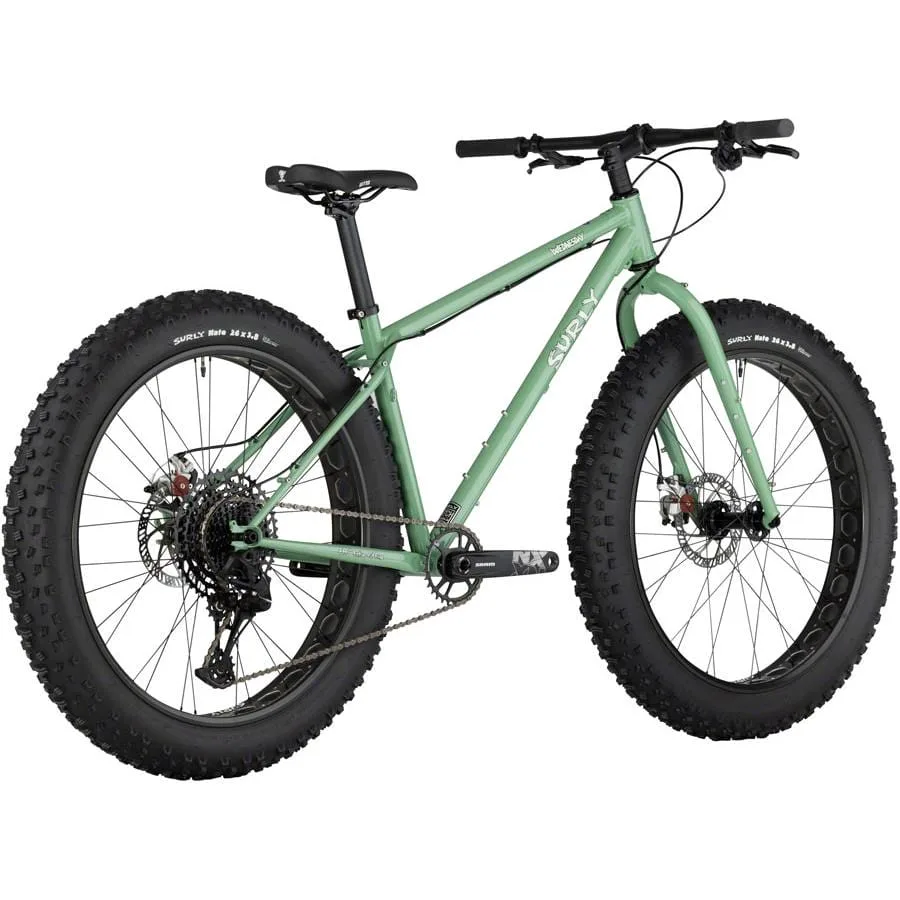

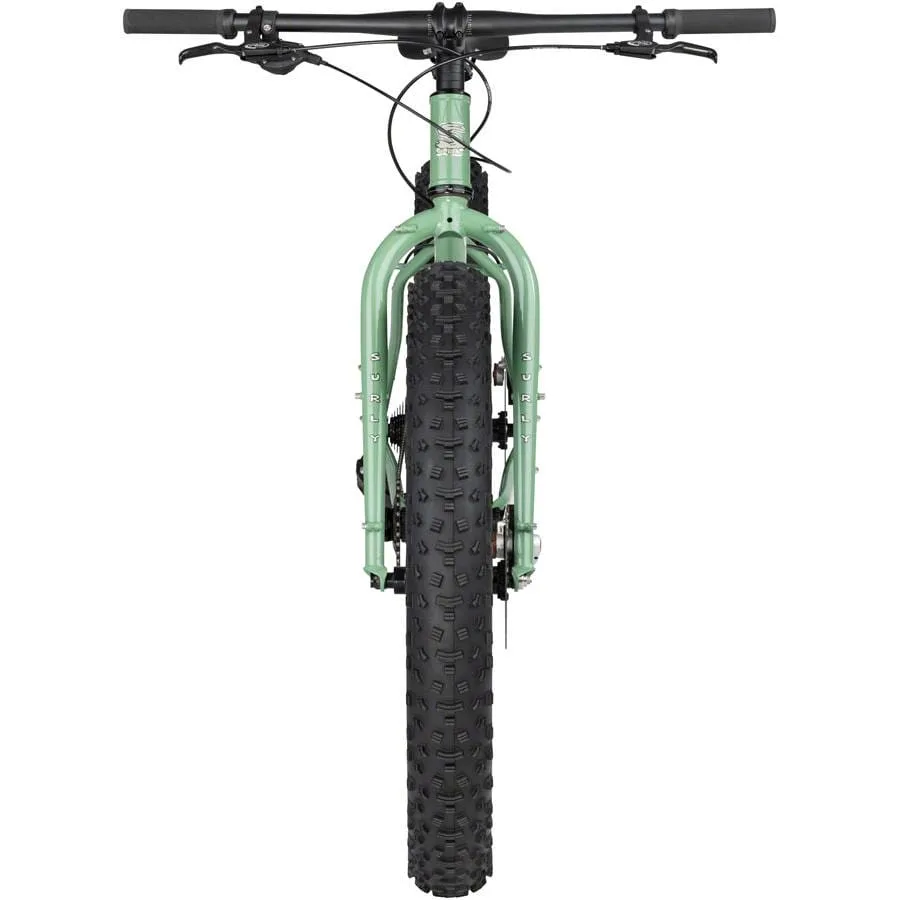

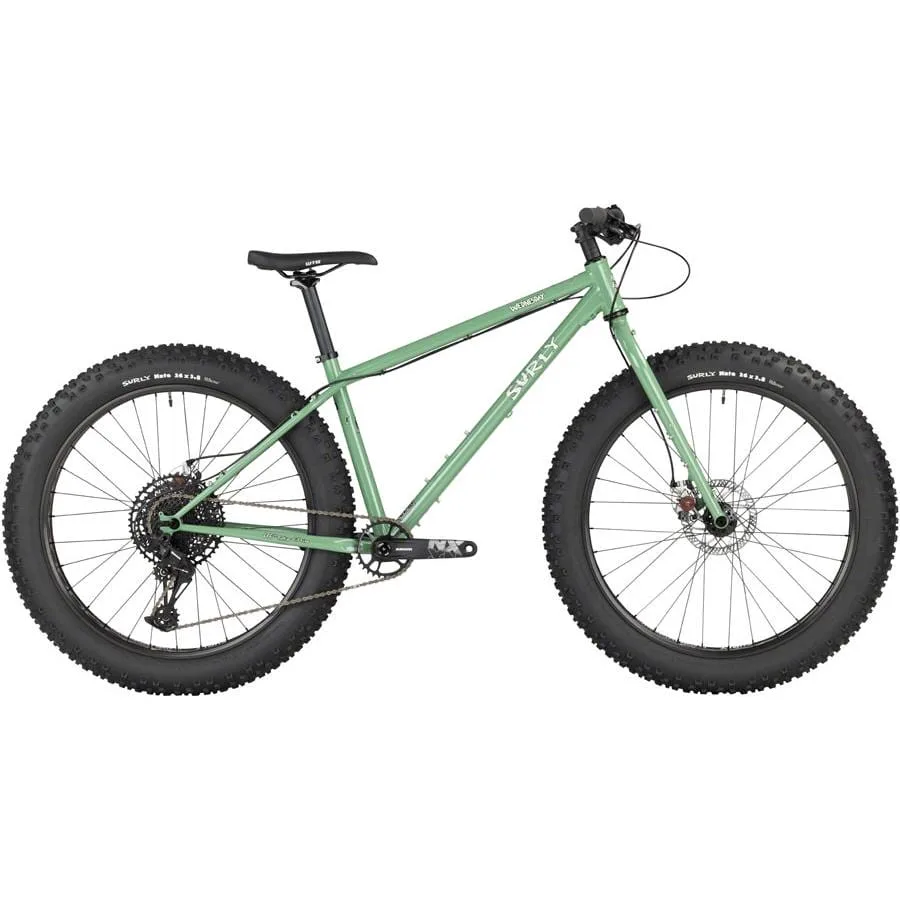

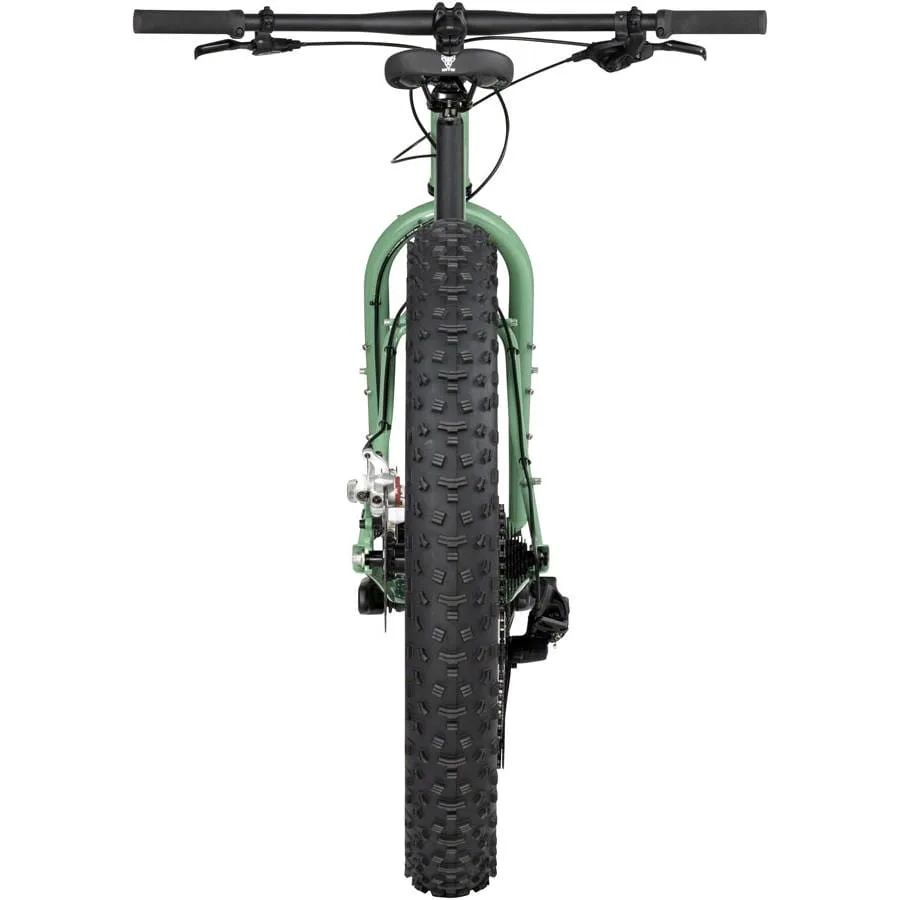

Surly Wednesday Fat Bike – 26″, Steel, Shangri-La Green

The Wednesday is Surly’s all-terrain fat bike. The frame features trail-ready geometry, 4.6″ of tire clearance, provides lots of cargo carrying capabilities and is paired with a 100mm suspension-corrected fork.

  • 100% Chromoly steel with 44mm headtube and internal dropper-post cable routing
  • Frame is E.D. coated for increased life expectancy
  • 1-1/8″ straight steerer fork, Chromoly steel
  • 100mm Threaded BB shell
  • Universal cast dropouts accommodate thru-axle or quick-release standards
  • Fork Material: Steel
  • Color: Shangri-La Green
  • Wheel Size: 26″ Fat
  • Brake Type: Disc
  • Platform: Wednesday
  • Fork Type: Rigid
  • Frame Material: Steel
  • TT (Effective): X-Small: 570, Small: 590, Medium: 610, Large: 630, X-Large: 650
  • Mfg Size: X-Small, Small, Medium, Large, X-Large
  • Frame Type: Rigid

Prop65warning 6pt WARNING Handling this product will expose you to chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

Surly Wednesday Fat Bike – 26″, Steel, Shangri-La Green

Frameset

Frame: 100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated

Fork: 100% Surly Chromoly Steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated

Seatclamp: Surly Stainless 33.1

Drivetrain

Crankset: SRAM NX Eagle DUB

Bottom Bracket: SRAM DUB

Front Derailleur: N/A

Rear Derailleur: SRAM SX Eagle

Cassette / Cog: SRAM Eagle 11-50t

Chain: SRAM SX Eagle 12-spd

Components

Headset: Cane Creek

Brakes: SRAM Avid BB5 Mechanical

Brake Levers: SRAM Avid FR-5

Rotors: 160F/160R

Rear Shifter: SRAM SX Eagle 12-spd

Stem: Kalloy 31.8

Handlebar: OE 31.8mm

Grip/Tape: Velo Black

Saddle: WTB Volt

Seatpost: Kalloy 30.9

Wheels

Front Hub: Novatec 15 x 150mm, 32h, 6-bolt

Rear Hub: Novatec 12 x 177mm, 32h, 6-bolt

Rims: Surly My Other Brother Darryl

Tires: Surly Nate 26 x 3.8˝, 60tpi, tubeless ready

Tubes: included

Other

Pedals: N/A

Misc: –

* Specifications are subject to change without notice

GEOMETRY

bike geometry

Frame measurements (mm) XS SM MD LG XL
A. BB Drop 55 55 55 55 55
B. Chainstay Length 435 435 435 435 435
C. Fork Length – Axle to Crown 468 468 468 468 468
D. Fork Offset 47 47 47 47 47
E. Head Tube Angle (deg) 69 69 69 69 69
F. Headtube Length 95 100 110 120 130
G. Reach 400 420 436 453 471
H. Seat Tube Angle (deg) 73.5 73.5 73.5 73.5 73.5
I. Seat Tube Length – Center to Top 316 366 416 466 516
J. Stack 573 578 587 597 606
K. Standover 711 737 774 807 841
L. Top Tube Length (Effective) 570 590 610 630 650
M. Wheelbase 1081 1101 1122 1143 1164
Component measurements (mm)
Crank Arm Length 170 170 175 175 175
Handlebar Width 700 700 750 750 750
Handlebar Rise / Drop – – – – –
Stem Length 60 60 70 70 80
Stem Angle (deg) 7 7 7 7 7

* All dimensions are preliminary and subject to change
