Surly Ice Cream Truck Fat Bike 26″ Steel Safety Mask Blue

15% Off, Free Shipping, 4 Sizes

Original price was: $2,349.00.Current price is: $1,999.00.

This product is shipped only in the U.S.
  • Model: Ice Cream Truck Fat Bike – Safety Mask Blue
  • Brand: Surly
  • Imported
  • Free Shipping
Stock availability can be changed at any time
SKU: N/A Categories: , , Tag:

Description

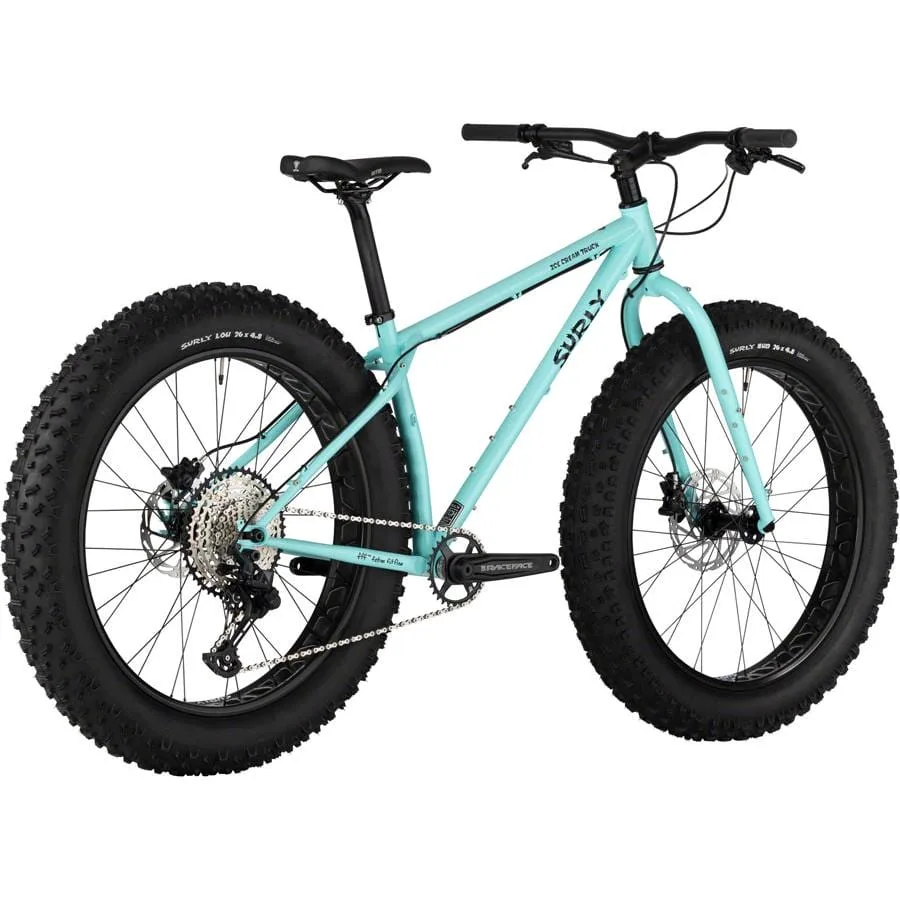

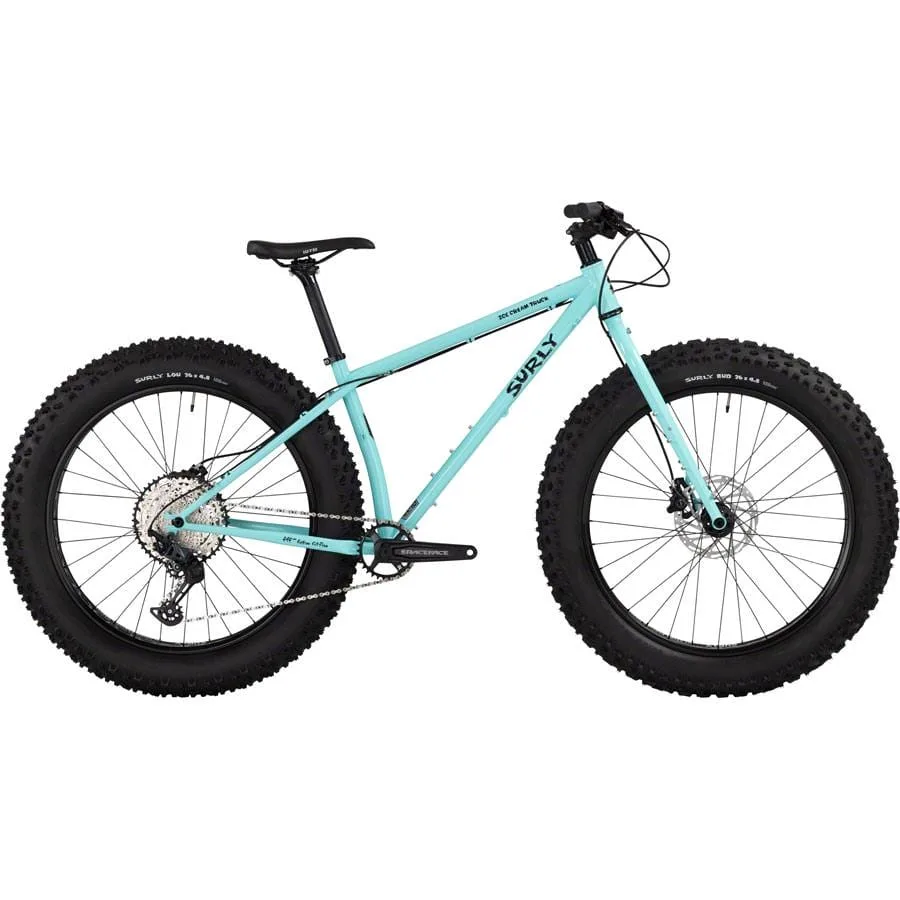

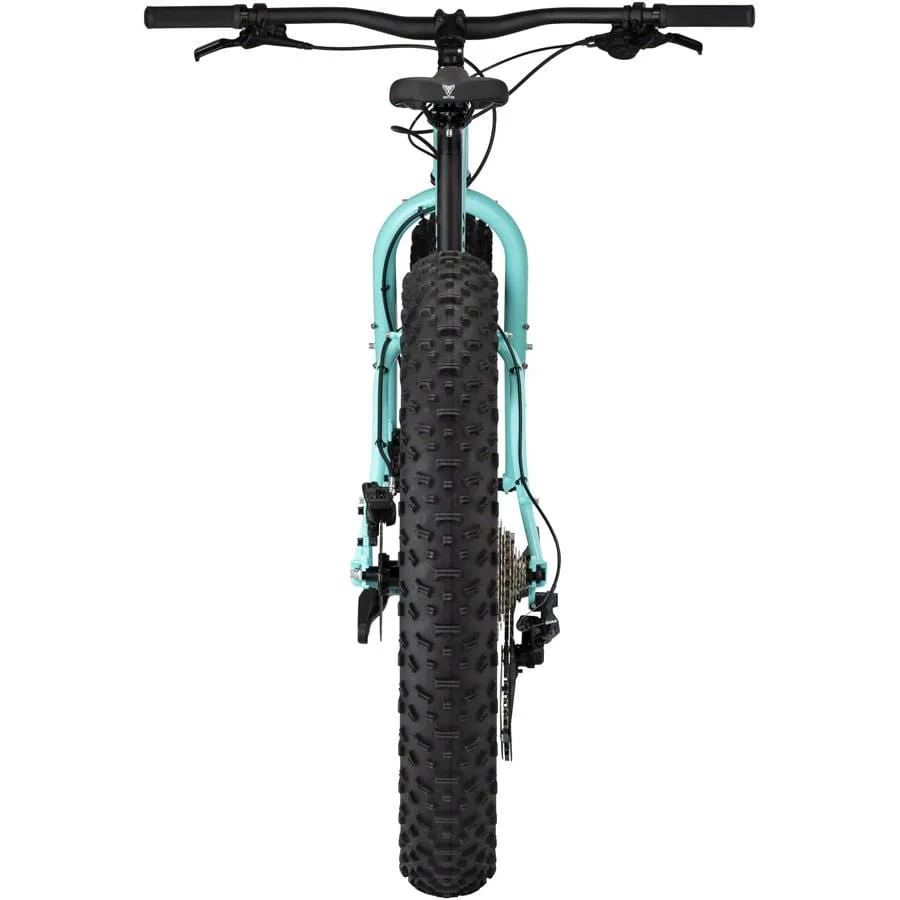

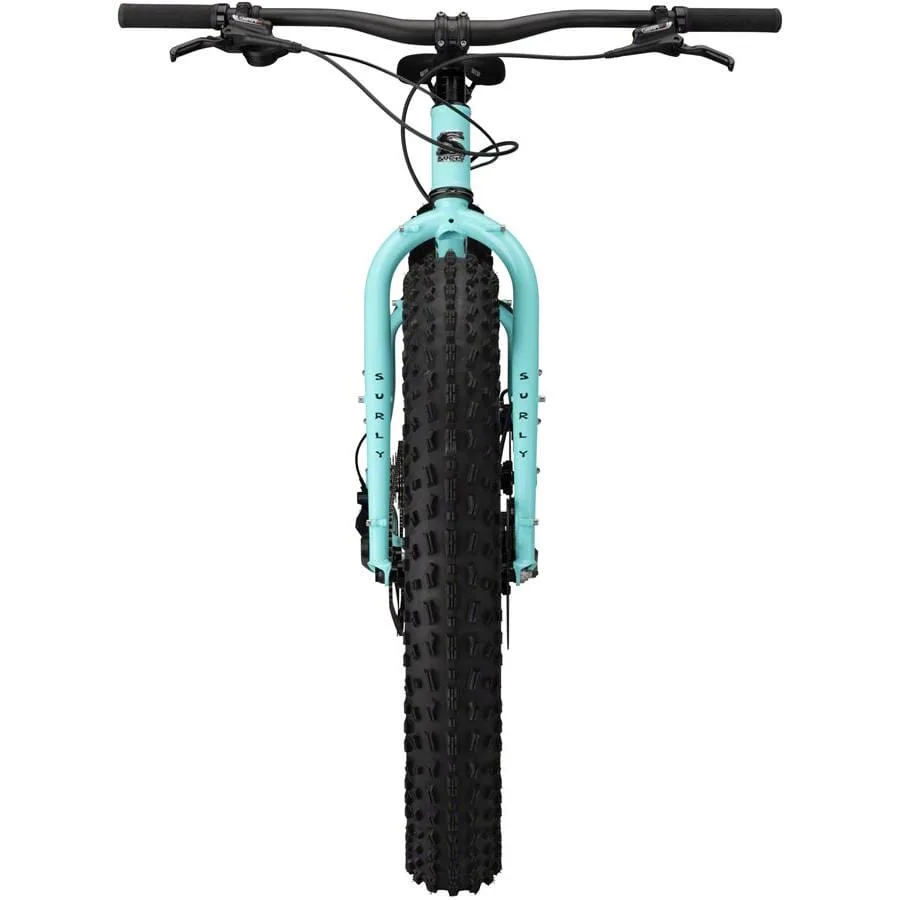

Surly Ice Cream Truck Fat Bike 26″ Steel Safety Mask Blue

Ice Cream Truck solves the problem of having to choose between a fat bike and a trail bike. It boasts a symmetric 190mm-spaced Chromoly frame, suspension-corrected 150mm-spaced fork, and sporty trail-oriented geometry. Supported by massive 4.8″ tires, it’s ready to deftly tackle nearly any terrain.

  • 100% Surly Chromoly steel with 44mm headtube and internal dropper post cable routing
  • Frame is E.D. Coated for increased life expectancy
  • 1-1/8″ straight steerer fork, Chromoly steel
  • 100mm threaded bottom bracket shell
  • Front and rear thru-axles, non-off-set
  • Universal cast dropouts accommodate thru-axle or quick-release standards
  • Fork Material: Steel
  • Color: Safety Mask Blue
  • Wheel Size: 26″ Fat
  • Brake Type: Disc
  • Platform: Ice Cream Truck
  • Fork Type: Rigid
  • Frame Material: Steel
  • TT (Effective): Small-585, Medium-610, Large-635, X-Large-660
  • Mfg Size: Small, Medium, Large, X-Large
  • Frame Type: Rigid

Prop65warning 6pt WARNING Handling this product will expose you to chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

Surly Ice Cream Truck Fat Bike 26″ Steel Safety Mask Blue

Frameset

Frame: Ice Cream Truck Frame- 100% Surly Chromoly steel, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, E.D. coated

Fork: Ice Cream Truck Fork – 100% Surly Chromoly steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated

Drivetrain

Crankset: Race Face Aeffect or Ride, 30t

Front Derailleur: N/A

Rear Derailleur: Shimano SLX RD-M7100 12-speed

Cassette: Shimano SLX 10-51t, 12-speed

Chain: KMC X12

Components

Grips / Bar Tape: Velo Black

Handlebar: Salsa Rustler 31.8

Stem: Kalloy 31.8

Headset: Cane Creek

Shifter: Shimano SLX SL-M7100

Brakes: SRAM DB Level TL Hydraulic or Tektro Gemini Hydraulic

Rotors: 180F/160R

Saddle: Selle Italia

Seatclamp: Surly Stainless 33.1

Seatpost: Kalloy 30.9mm

Wheels

Front Hub: Novatec 150x15mm

Rear Hub: OE 197x12mm, Shimano Microspline

Rims: Surly My Other Brother Daryl Rims, 32h

Tires: Surly Bud & Lou, 26 x 4.8″, 120tpi, tubeless ready

Tubes: included and installed

Other

Pedals: N/A

Misc: –

* Specifications are subject to change without notice

GEOMETRY

bike geometry

Frame measurements (mm) SM MD LG XL
A. BB Drop 60 60 60 60
B. Chainstay Length 440 440 440 440
C. Fork Length – Axle to Crown 483 483 483 483
D. Fork Offset 47 47 47 47
E. Head Tube Angle (deg) 68.0 68.0 68.0 68.0
F. Headtube Length 95 105 115 125
G. Reach 405 427 449 472
H. Seat Tube Angle (deg) 73.0 73.0 73.0 73.0
I. Seat Tube Length – Center to Top 366 419 470 521
J. Stack 588 598 607 616
K. Standover 777 803 831 812
L. Top Tube Length (Effective) 585 610 635 660
M. Wheelbase 1105 1131 1157 1182
Component measurements (mm)
Crank Arm Length 170 175 175 175
Handlebar Width 750 800 800 800
Stem Length 60 70 80 90
Stem Angle (deg) 7 7 7 7

* All dimensions are preliminary and subject to change
