Wild Dragon 27.5″ Carbon Fat Bike Rim 85mm



Shipping: 1-3 weeks
Warranty: 2 Years / Premium 3 Years

  • *Edition
    *Carbon Weave
    *Number of Spoke Holes

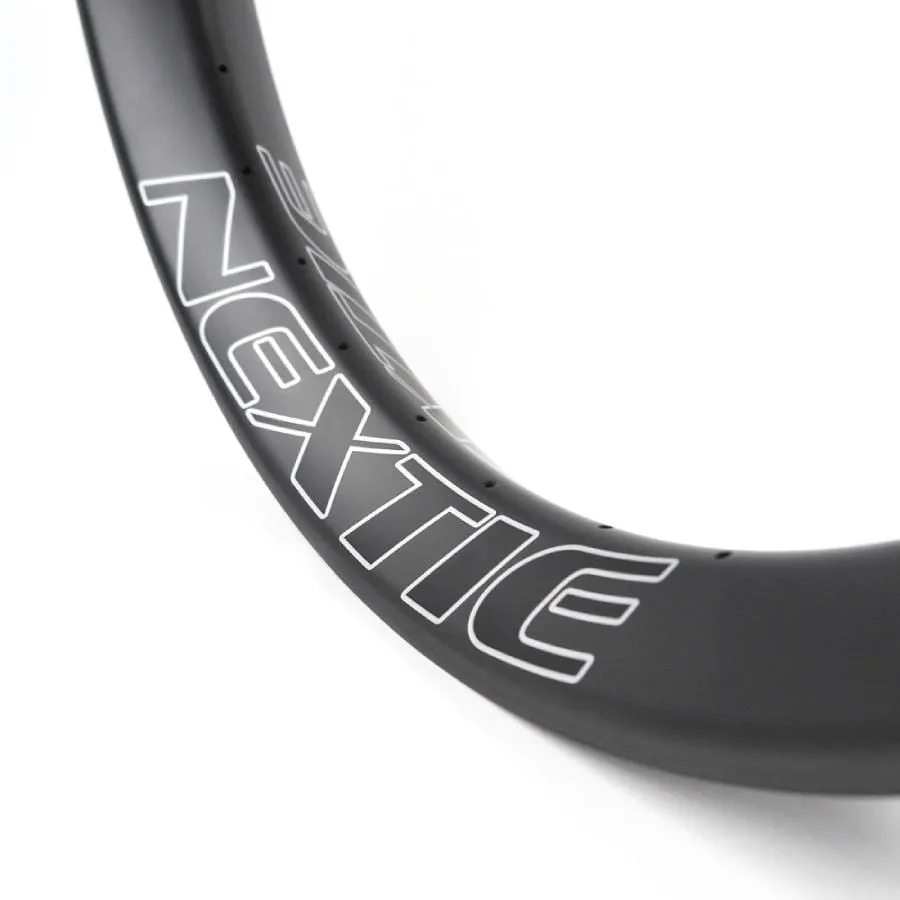

    *Decals of "NEXTIE" logo
Stock availability can be changed at any time
SKU: NXT27WD85-II Categories: , Tags: , ,


Wild Dragon 27.5″ Carbon Fat Bike Rim 85mm

Wild Dragon 90mm rim is the very first carbon fat bike rim over the world in the year of 2013. The initial design concept emerged from a professional bicycle rider named Ryan Melnyck, who is a former Canadian national champion in a mountain cross country racing and multi times provincal champion, also a mechanical designer, having done lots of design works for other brands.

The tri-angle cross-section of Wild Dragon highly supports the strength of wheel. The positive stiffness reaches amazing result of 426KG in the first test, more than 4 times of a normal carbon mountain wheel. The roof surface could easily slide snow, mud or sand from the wheel, which makes cycling effortless. As well, installing or uninstalling a tire gets quite easy to process by the design of smooth rim bed surface.

Carbon fat bike rim 65mm

Design Features

Extra wide options fit jumbo snow tires for extreme snow conditions while reducing rotating mass.

Wide 85mm design is ideal for four-season trail riding with 4.0″ to 5.2″ wide tires.

The 40mm deep section of the Wild Dragon rims provides extra rigidity for more aggressive riders.

Providing a deep channel between the bead seats makes it easier to install and take off tires.

A compact bead socket locks tires in tightly for easy tubeless installation.

Aero-style rim profile (the triangle-like shape) sheds dirt and mud when conditions get rough.

(If you’ve ever packed wet snow between your spokes where it sticks to rim cutouts, you know how critical this feature can be)

What’s in the Box

Carbon Rim(s)

  • Name: Wild Dragon (Mark II)
  • Code: NXT27WD85-II
  • Rim Type: Fat Bike (Clincher, Half-Hookless)
  • Materials: Toray T700 Carbon Fiber / Premium Toray T800+T700 Carbon Fiber (Premium)
  • Tubeless Compatible: Yes
  • Warranty: 2 Years / Premium 3 Years


  • Size: 27.5″
  • Axial Direction Angle: 9 degree
  • BSD (Bead Seated Diameter): 584mm
  • ERD (Effective Rim Diameter): 523mm
  • External Width: 85mm
  • Radial Direction Angle: 6.5 degree
  • Internal Width: 78mm
  • Rim Height: 40mm
  • Weight: 670g / Premium 610g
  • Valve Hole Diameter: 6.5mm (Presta)
  • Spoke Holes Diameter: 4.5mm
  • Spoke Holes Offset: +/-2.5mm
  • Assembly Hole Diameter: 7.5mm


  • Spoke Tension: 80~130kgf
  • Tire Size: 3.8″ ~ 5.0″
  • Spoke Nipple Length: 14mm
  • Tire Pressure: 5-15psi
  • Load Limit (One Wheel): 200kg


  • Weave: UD / 3K / 12K
  • Finish: Matte / Glossy


  • Enduro / Snow / Sand / Dirt and more
