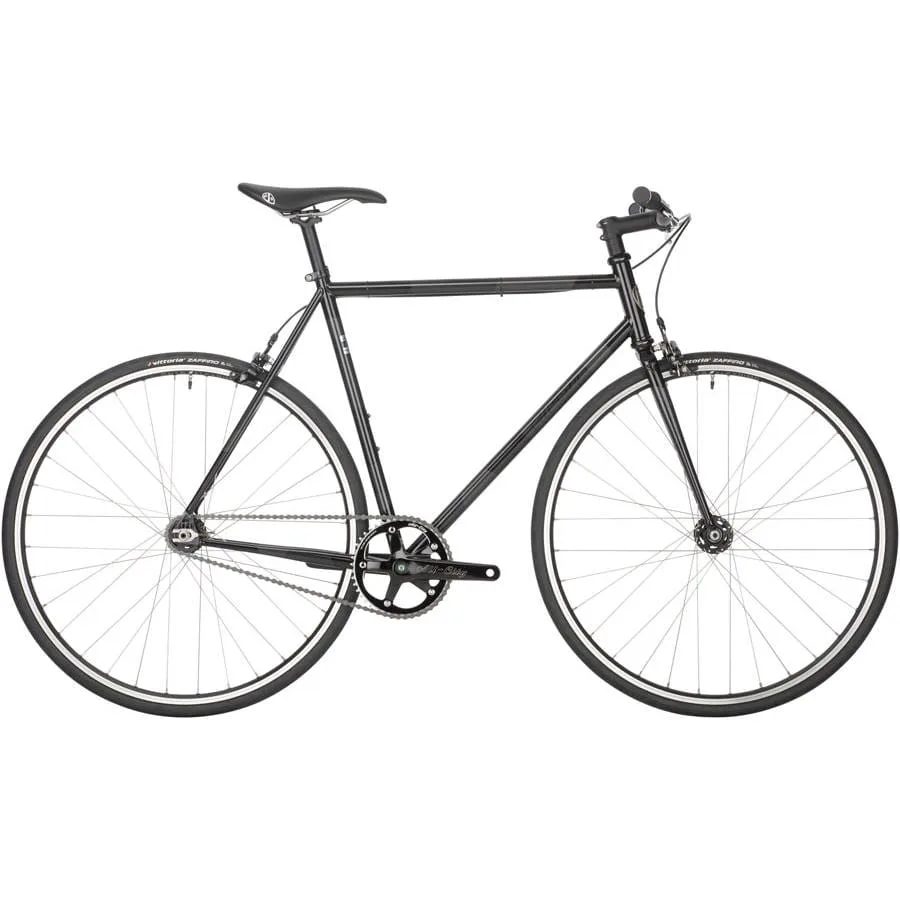

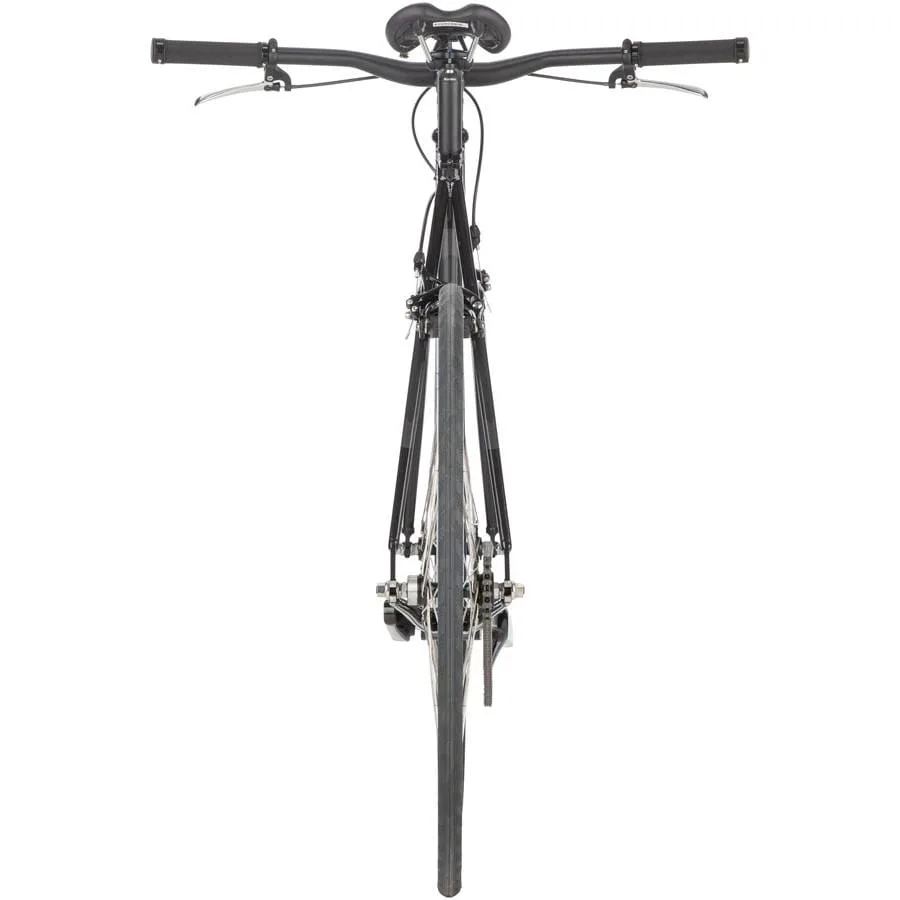

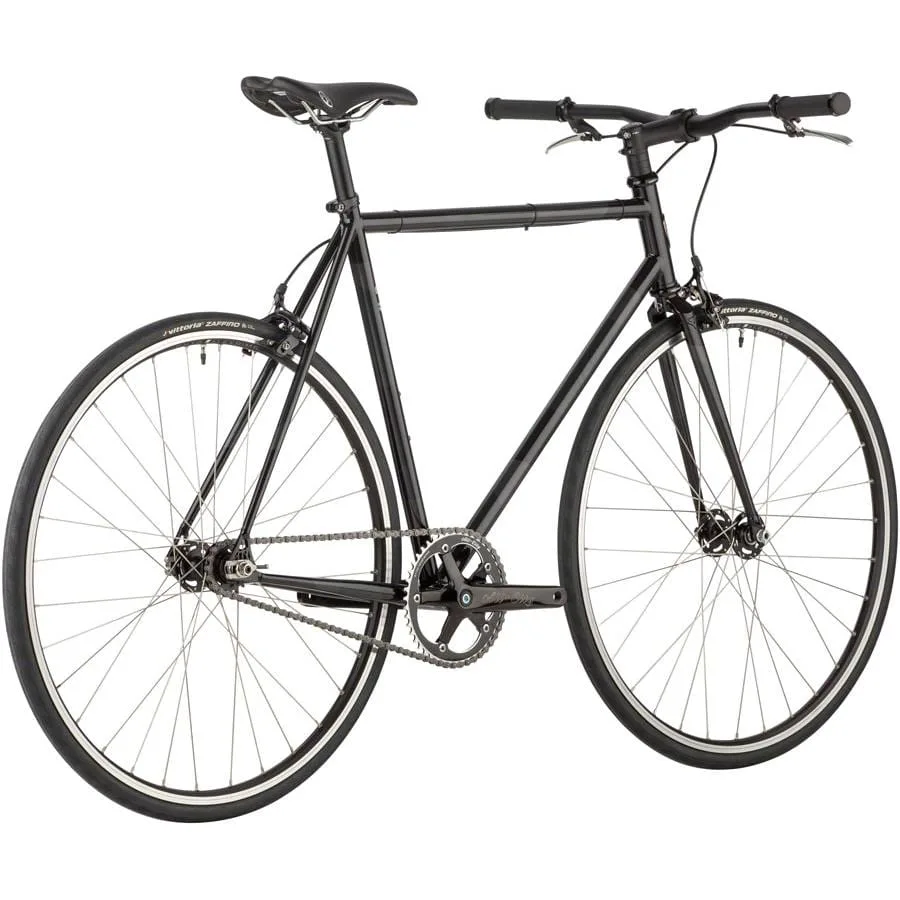

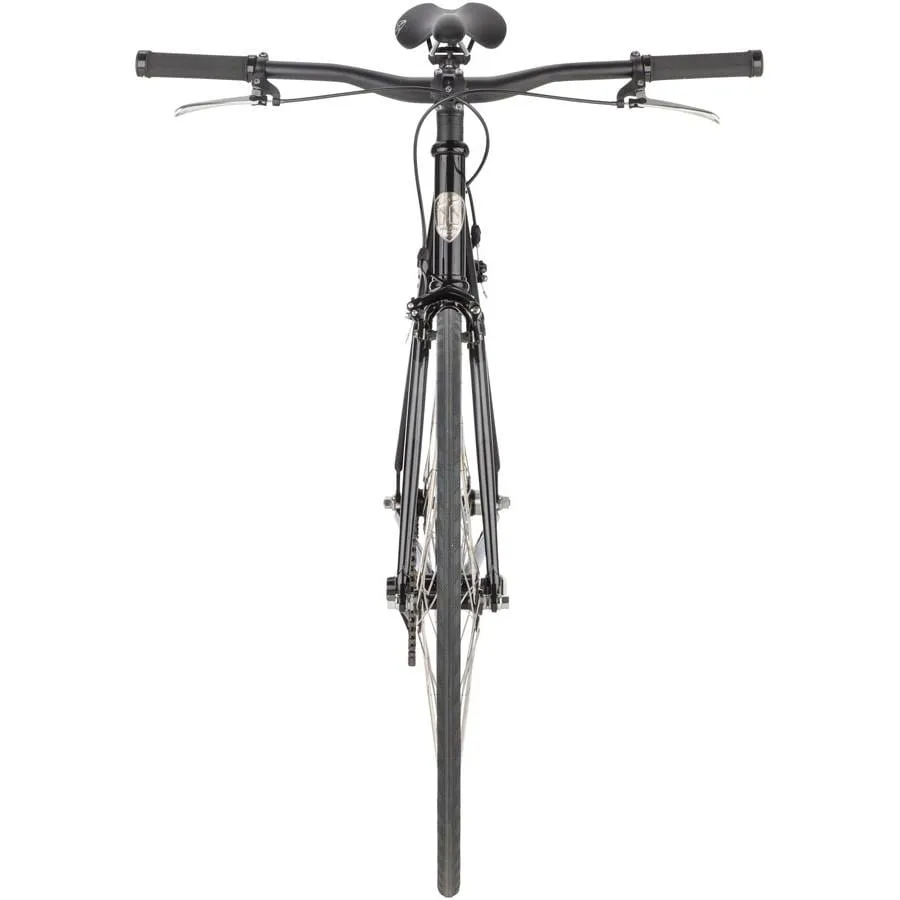

All-City Big Block Bike 700c Steel Night Sky/Smoke

Free Shipping, 5 Sizes

$999.00

This product is shipped only in the U.S.
  • Model: Big Block Bike – Night Sky / Smoke
  • Brand: All-City
  • Imported
  • Free Shipping
Stock availability can be changed at any time
SKU: N/A Categories: , , , Tags: , ,

Description

All-City Big Block Bike 700c Steel Night Sky/Smoke

The Big Block represents All-City’s vision of the ideal track bike for everyday life. Take it to the streets or the boards. Wherever you ride it, the Big Block will hold up its end of the deal.

  • 612 Select chromoly steel with double-butted main triangle, tapered stays and brazed-on seat collar
  • 4130 Chromoly double butted fork with lugged crown and tapered blades
  • Velodrome legal track geometry
  • All-City Signature investment-cast stainless steel Hennepin Bridge track dropouts with built-in chain tensioner
  • E.D. coated for durability and rust prevention
  • Tire clearance: 700c x 32mm; 28mm with fenders
  • Fork Material: Steel
  • Color: Night Sky / Smoke
  • Wheel Size: 700c
  • Brake Type: Rim
  • Platform: Big Block
  • Fork Type: Rigid
  • Rear Axle: 10×1 Threaded x 120mm
  • Frame Material: Steel
  • TT (Effective): 520
  • Defined Color: Multi-Color
  • Mfg Size: 46
  • Front Axle: QR x 100mm
  • Frame Type: Rigid

Prop65warning 6pt WARNING Handling this product will expose you to chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

All-City Big Block Bike 700c Steel Night Sky/Smoke

Frameset

Frame: 612 Select Chromoly Steel

Fork: All-City Big Block Signature Fork

Drivetrain

Crankset: All-City 612 Track Crank, 165mm, 46t ring

Bottom Bracket: Square Taper, 68x110mm steel cups, sealed bearings

Front Derailleur: N/A

Rear Derailleur: N/A

Cassette / Cog: All-City standard, 17t

Chain: KMC B1H-Wide

Components

Grips / Bar Tape: Velo single lock-on

Handlebar: JD Components, AL6061, 720mm wide, 20mm rise

Stem: JD Components, AL6061, 3D forged, 4-bolt stem, 31.8mm, ±7°

Headset: Cane Creek 40 Series

Front Shifter: N/A

Rear Shifter: N/A

Brake Levers: Tektro FL750

Brakeset: Tektro R539

Saddle: All-City Gonzo

Seatclamp: All-City Signature Brazed-on Seat Collar

Seatpost: JD Components, AL6061, 27.2, 12mm Offset

Wheels

Front Hub: JoyTech A565, 32h

Rear Hub: JoyTech A566, 32h

Rims: Alex DH19, 32h, with CNC Brake Track

Tires: Vittoria Zaffiros IV, 700c x 28mm

Tubes: included

Other

Pedals: N/A

Misc: –

* Specifications are subject to change without notice

GEOMETRY

bike geometry

Frame measurements (mm) 46cm 49cm 52cm 55cm 58cm 61cm
A. BB Drop 58 58 58 58 58 58
B. Chainstay Length 396 396 396 396 396 396
C. Fork Length – Axle to Crown 375 375 375 375 375 375
D. Fork Offset 32 32 32 32 32 32
E. Head Tube Angle (deg) 73 73.5 74 74.5 74.5 75
F. Headtube Length 95 110 130 150 175 200
G. Reach 382 393 398 408 421 434
H. Seat Tube Angle (deg) 75 75 74.5 74.5 74.5 74.5
I. Seat Tube Length – Center to Top 460 490 520 550 580 610
J. Stack 509 525 546 567 591 616
K. Standover 743 767 793 819 846 874
L. Top Tube Length (Effective) 520 535 550 565 585 605
M. Wheelbase 945 957 963 974 994 1009
Component measurements (mm)
Crank Arm Length 165 165 165 165 165 165
Handlebar Width 720 720 720 720 720 720
Seatpost Offset 12 12 12 12 12 12
Stem Length 80 90 100 100 110 110
Stem Angle (deg) 7 7 7 7 7 7

Additional information

Categories

Brand

Color

Size

46cm, 49cm, 52cm, 55cm, 58cm
