In Stock

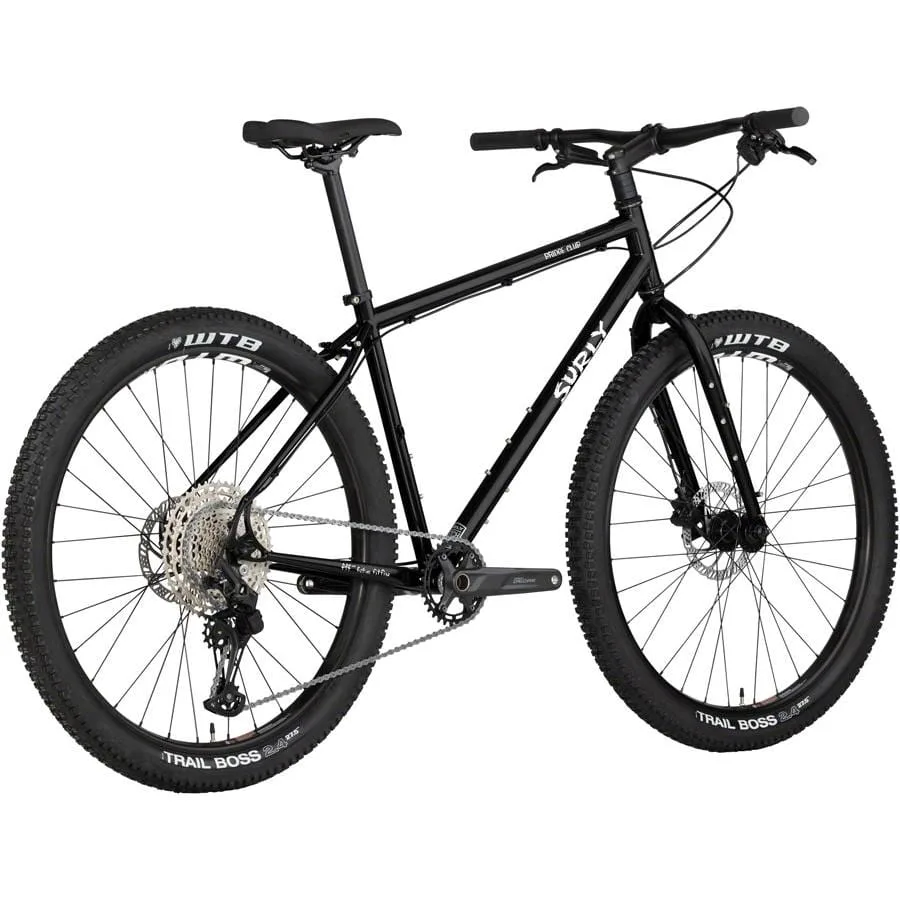

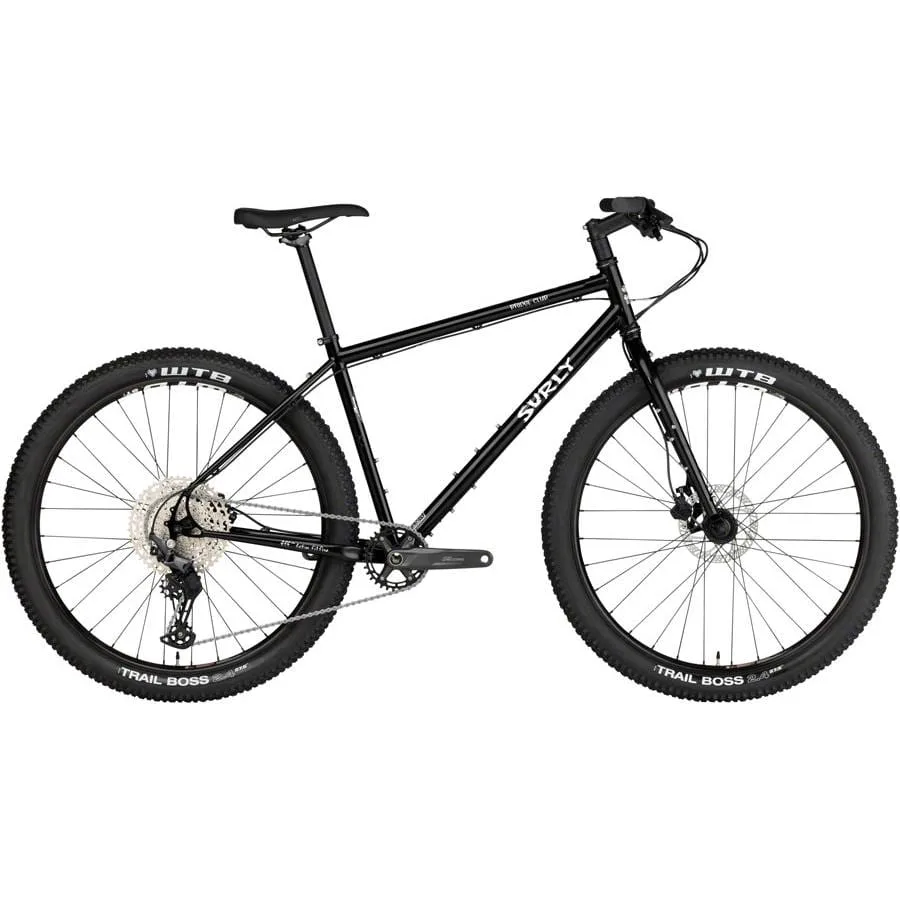

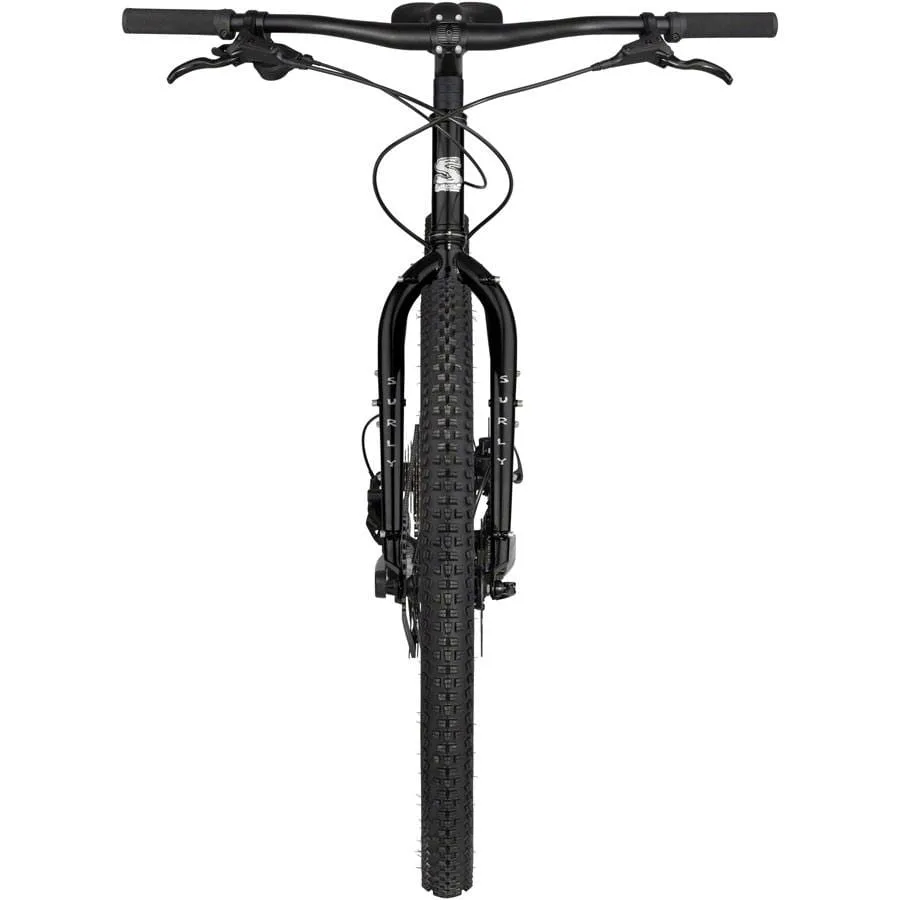

Surly Bridge Club Bike 27.5 Steel Black

Free Shipping, 5 Sizes

$1,499.00

This product is shipped only in the U.S.
  • Model: Bridge Club 27.5 Bike – Black
  • Brand: Surly
  • Imported
  • Free Shipping
Stock availability can be changed at any time

Description

Surly Bridge Club Bike 27.5 Steel Black

As a highly versatile touring bike, the Bridge Club hits the sweet spot that separates on- and off-road excursions. The simplistic design makes it fully adept to handle a full rack and pannier setup, frame bags, or any combination of the two. It doesn’t feel sluggish on paved shortcuts, but can also hold its own on dirt detours. If you’re feeling a little zesty on your next road tour, you won’t be ill-prepared for reroutes through the woods. The Bridge Club is designed to handle it all.

  • 100% Surly Chromoly frame, main triangle is double-butted; 1-1/8″ threadless Chromoly fork
  • Rack, fender, and four sets of three-pack mounts
  • Disc brake-specific, single-position vertical rear dropout makes it less intimidating than other bikes in the category
  • Durable 700c wheel build, including Surly Extra Terrestrial 700 x 41mm tires
  • Swept-back comfort and off-road capable Surly Terminal Handlebar
  • Clearance for 700 x 47mm (with or without fenders) or 27.5 x 2.8″ tires (27.5 x 2.6″ with fenders)
  • Fork Material: Steel
  • Color: Black
  • Wheel Size: 27.5″
  • Brake Type: Disc
  • Platform: Bridge Club
  • Fork Type: Rigid
  • Frame Material: Steel
  • TT (Effective):
    X-Small-545
    Small-570
    Medium-595
    Large-615
    X-Large-630
  • Mfg Size: X-Small/Small/Medium/Large/X-Large
  • Frame Type: Rigid

Prop65warning 6pt WARNING Handling this product will expose you to chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling

Surly Bridge Club Bike 27.5 Steel Black

Frameset

Frame: 100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated

Fork: 100% Surly Chromoly Steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated

Drivetrain

Crankset: Shimano Deore FC-M5100, 32t

Front Derailleur: N/A

Rear Derailleur: Shimano Deore RD-M5100, Shadow Plus

Cassette: Shimano Deore 11-speed, 11-51t

Chain: KMC X11

Components

Grips / Bar Tape: Velo Black

Handlebar: Salsa Bend

Stem: Promax 31.8

Headset: Cane Creek

Shifter: Shimano Deore SL-M5100-R

Brakes: Tektro Hydro HD-M275/276

Rotors: 160F/160R

Saddle: WTB Volt

Seatclamp: Surly Stainless 30.0

Seatpost: Promax 27.2mm

Wheels

Front Hub: Novatec 9×100, 6-bolt disc

Rear Hub: Novatec 10×141, 6-bolt disc, 11-spd

Rims: WTB ST i29 TCS

Tires: WTB Trail Boss 27.5 x 2.4″, 27tpi, Tubeless Ready

Tubes: included and installed

Other

Pedals: N/A

Misc –

* Specifications are subject to change without notice

GEOMETRY

bike geometry

Frame measurements (mm) XS SM MD LG XL
A. BB Drop 60 60 60 60 60
B. Chainstay Length 435 435 435 435 435
C. Fork Length – Axle to Crown 420 420 420 420 420
D. Fork Offset 43 43 43 43 43
E. Head Tube Angle (deg) 70.0 71.0 71.0 71.0 71.0
F. Headtube Length 110 120 130 145 165
G. Reach 376 397 419 434.5 444
H. Seat Tube Angle (deg) 73.0 73.0 73.0 73.0 73.0
I. Seat Tube Length – Center to Top 335.6 406.4 457.2 508 558.8
J. Stack 553 567 576 590 609
K. Standover 709 750.5 780 812 845.5
L. Top Tube Length (Effective) 545 570 595 615 630
M. Wheelbase 1032 1047.5 1073 1093 1109
Component measurements (mm)
Crank Arm Length 170 170 175 175 175
Handlebar Width 700 700 740 740 740
Stem Length 80 or 90 80 or 90 90 90 80, 90, or 100
Stem Angle (deg) 7 7 7 7 7

* All dimensions are preliminary and subject to change
