Hope Retainer Ring R22 104 BCD Chainring Brand New All Colors

Available in seven colors

$65.50

International Shipping is temporarily unavailable. International Buyers - Please shop from our Ebay Store

Hope R22 narrow/wide chainring for a four-bolt 104 BCD spider. Choose 32, 34, 36 or 38T and your colour. Confirm crank fit, clearance and chainline before ordering; this is not the spiderless version.

Stock availability can be changed at any time

Description

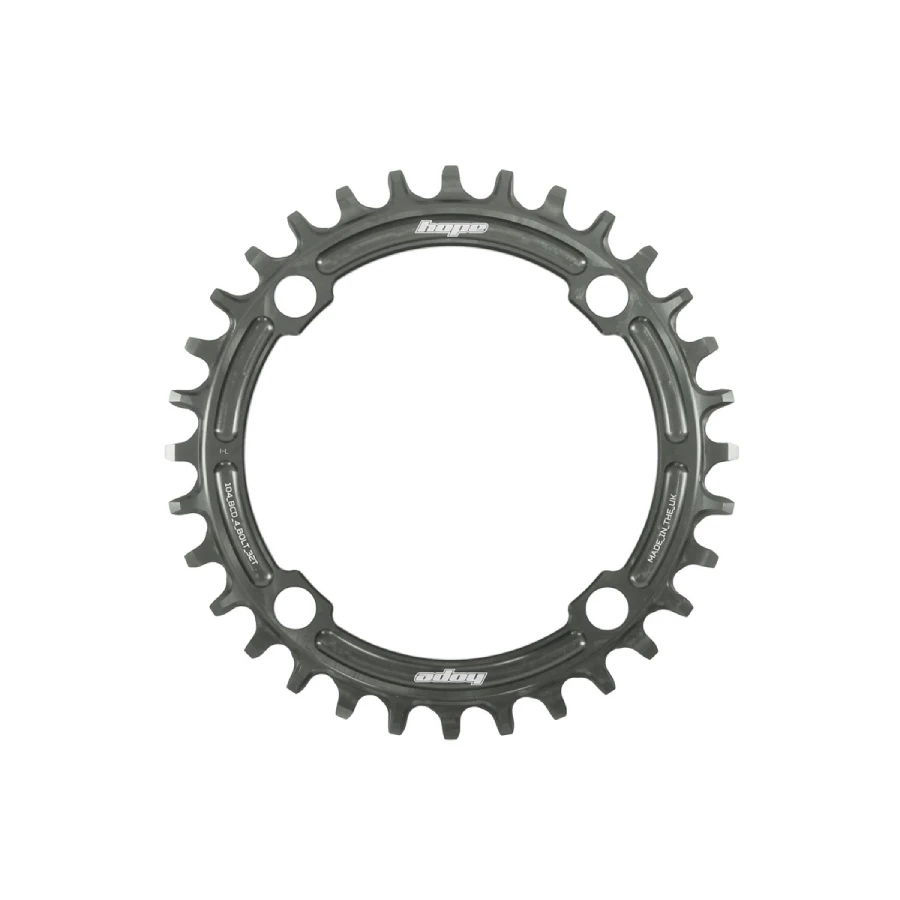

The Hope Retainer Ring R22 104 BCD Chainring is a narrow/wide chainring for a four-bolt 104mm BCD spider. This is the toothed chainring, not a crankset retaining lockring or a spiderless direct-mount ring.

R22 chainring specifications

  • Mount: 104 BCD, four bolts.
  • Tooth counts: 32, 34, 36 and 38T.
  • Material: CNC-machined 7075-T6 aluminium.
  • Drivetrain compatibility: Hope lists 9, 10, 11 and 12-speed compatibility, including SRAM T-Type and Shimano HG+ chains. This does not establish crank or frame fitment.
  • Colours: Black, Blue, Orange, Purple, Red, Silver and Smoke; select the required size and colour above.

Hope describes the narrow/wide profile as a chain-retention design for single-ring setups. See Hope’s R22 104 BCD specifications for the manufacturer’s details.

Check before ordering

  • Crank interface: confirm a four-bolt 104 BCD spider; do not select by the R22 name alone.
  • Tooth count: check the space available around your frame and existing drivetrain before changing size.
  • Bolts and seating: Hope’s bolt-on chainring instructions require suitable bolt length and a ring that seats flush on the spider. Follow the applicable bolt manufacturer’s tightening specification.
  • Chainline: Hope notes that adjustment may be needed after fitting. Chain compatibility alone does not confirm the finished assembly.

If the crank model or mounting arrangement is unclear, send The LBS those details before ordering. Have a qualified mechanic check an uncertain installation before riding.

Hope Retainer Ring R22 104 BCD Chainring

Additional information

Package Weight 1 lbs
Package Dimensions 8 × 6 × 1 in
Categories

Options

Mount Options

Offset Options

Color

Black, Blue, Orange, Purple, Red, Silver, Smoke

Tooth Count

32, 34, 36, 38
